Card Controller

TSG-250PC

TSG-550PC

GAUSS

  • Door access and Time attendance management

    Security accuracy, performance, speed, and style in an affordable, easy-to-use solution

  • 1.8 inch Color LCD

    1.8-inch color LCD, user GUI so that anyone can use it without knowing the manual

Easy installation and
user friendly management.
High-Definition Color Display.
Various Access Control
and Time Attendance

Use of various cards
EM/HID/MIFARE/iClass

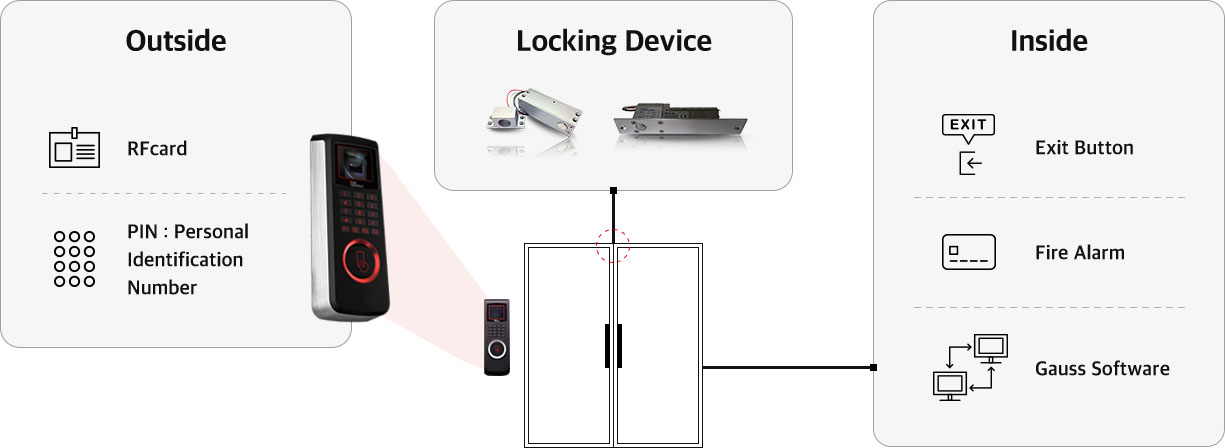

System Configuration Diagram

Product Info

TSG-250PC Specification
CPU 32bit
RF Card EM/MIFARE/HID ICLASS
LCD 1.8” Color LCD
LED Red/Green/Blue
Button 4 function + 12 numeric buttons
Communication TCP/IP, RS485
USB YES
Input EXIT, Door Contact/External Reader
Output 2 Relays (Door/ Alarm)
Voice Output Voice message
User Registration 1,000 users
Access Events 100,000 events
Anti-passback Yes
Size 60mm×165mm×40mm
