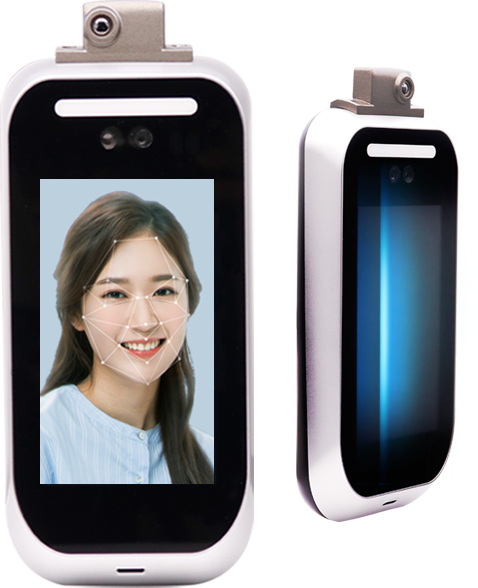

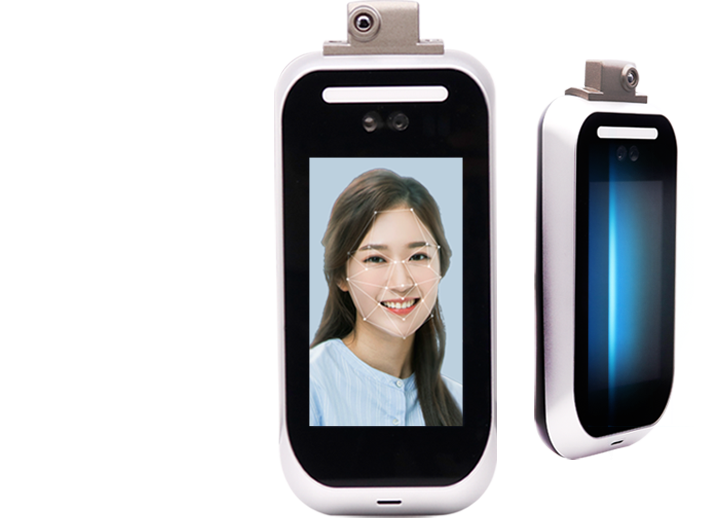

Face Controller

FE-500S

GAUSS

FE-500

  • AI technology

    Through AI technology that
    enables continuous learning,
    the recognition rate is increased by
    reflecting recent changes
    in the user's face.

  • Recognition Speed for 1:N

    <1 Sec when 50K user

  • Recognition Function

    Face recognition + Mask detection +
    Temperature measurement
    + Multi verification + Live detection

Better life & Best security
Trust and Convenience

FE-500S can check the user’s temperature and disable access in advance.
In addition, there is a function that makes it
impossible to enter without wearing a mask.

  • 99.77%

    Recognition
    rate

  • 1 sec

    Recognition
    speed

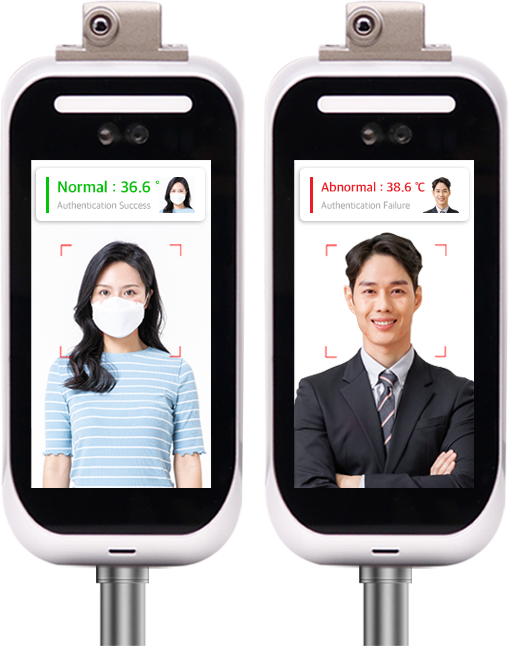

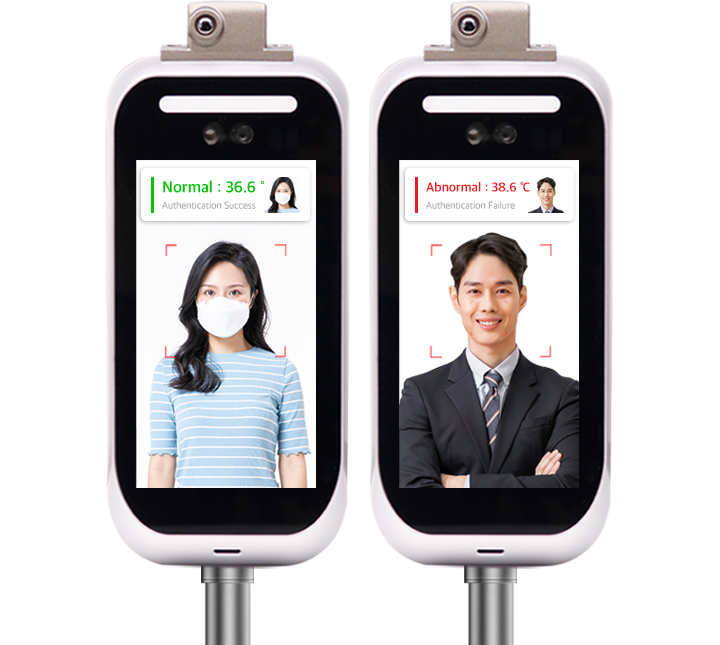

  • Sensor

    Temperature
    measurement

Temperature measured
value is displayed on LCD,
so access is not possible
if it is above 38 degrees

Live detection

When there are 50K user, it can be applied to Access/T&A of
large-scale business sites at a speed of less than 1 second.

Real-time face recognition success
Real-time face recognition failure(photo/video)

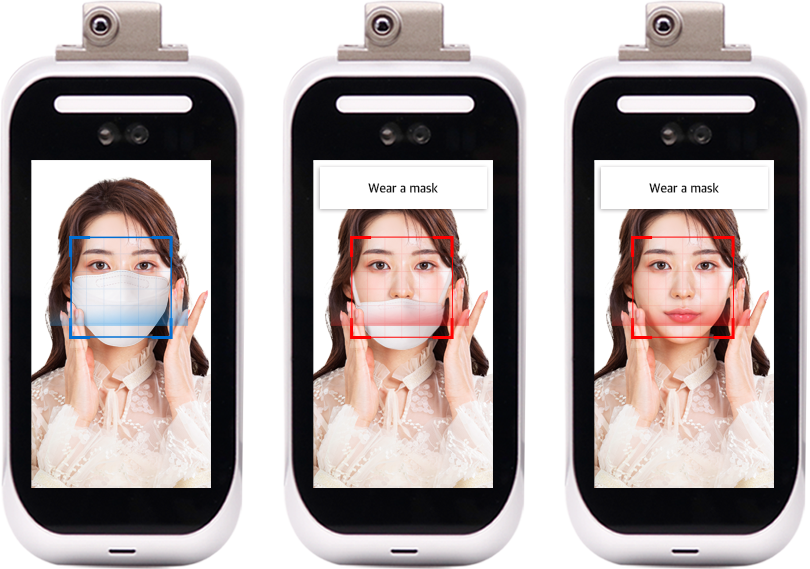

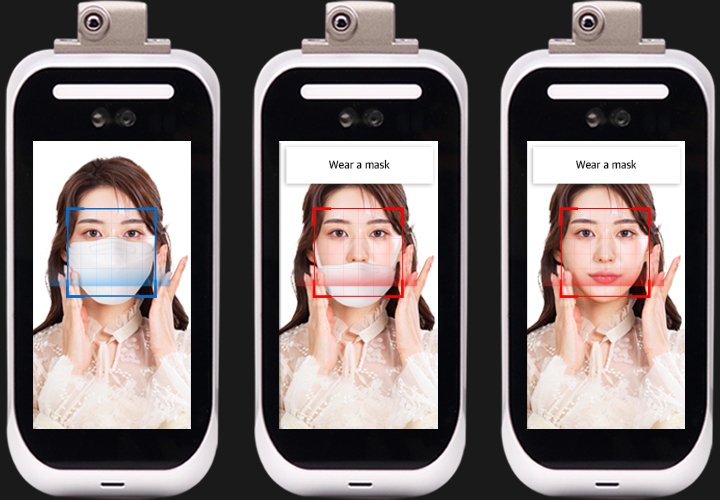

Mask detection

If you are not wearing a mask,
you will hear voice saying "Please wear a mask."

Multi-user function

Possible to authenticate 3-5 people
simultaneously within 1sec

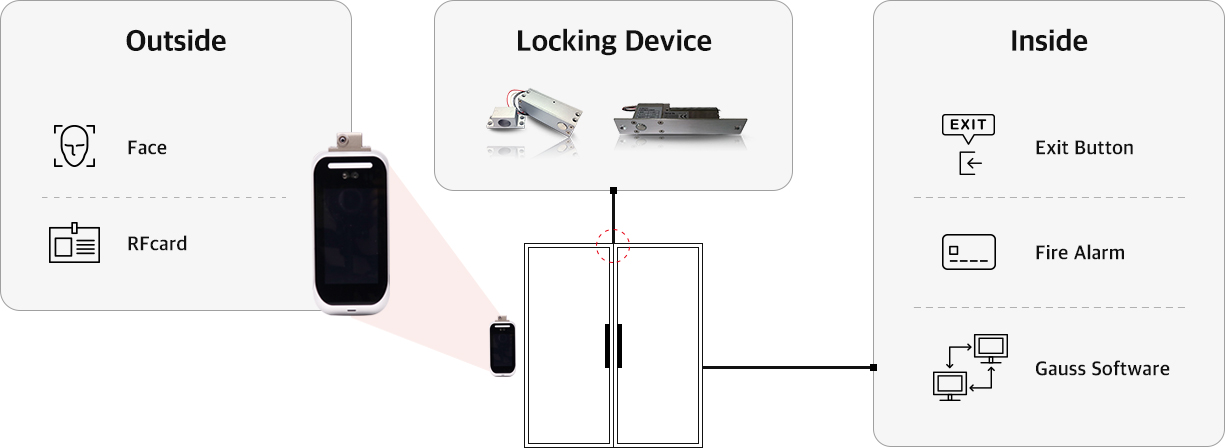

System Configuration Diagram

Product Info

1. FE-500S Specification
CPU 2 core CPU
Memory 4GB RAM, 8G Flash
LCD 5 inch / 7 inch IPS Touch screen
Camera 2MP dual-lens
No. of user Registration 50K user capacitor / 1,000K Event log
OS Linux
Function Face + Temperature + Mask detection
Power 12V/2A
Detection Single / Multi(Up to 5 person)
Range Max 3M / For temperature 50cm
Live detection Picture, Video, Mask can be detected
Communication TCP/ WIFI(Option)
Speed >1s(1:N, 50k)
RF card MIFARE
Temperature -10°C – 50°C
Humidity 10% - 90%
Size 192mm×92mm×30mm
2. Thermal Sensor Specification
Type Thermal sensor
Frame Rate 12fps
Temperature Accuracy ±0.3°C
Temperature Distance 0.2M-0.6M
FOV 33×33
Control I2C
Scan range temperature 30°C - 50°C
Focal length 5mm
Humidity 10% - 90%
Power DC5V
